Series 477-1T-AV AIR VELOCITY KITS
Digital Manometer and Pitot Tube for Balancing System Air Flows
Convenient all-in-one kit is small, light and easy to use. No set-up or leveling needed. Digital manometer reads from 0-20" w.c. with ±0.5% F.S. accuracy. The Series 477AV stores up to 40 readings in memory for later reference, with selectable English/Metric pressure, flow and velocity units that are visible on a large, backlit 0.4" LCD readout. Both audible and visual overpressure alarms and a “low battery° warning are standard features.

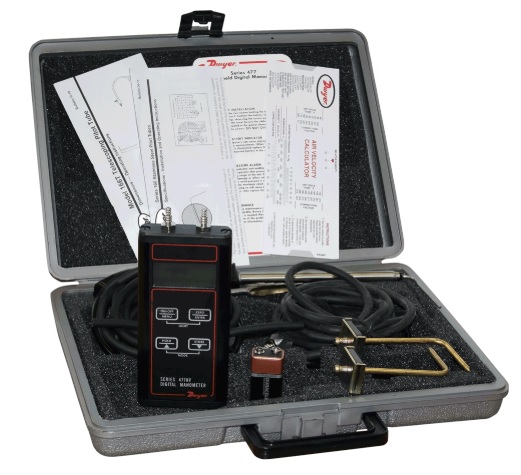

Complete Kit Includes:

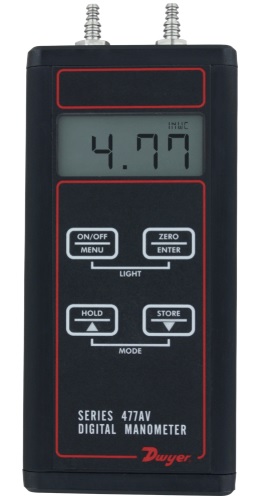

| Series 477AV Handheld Digital Manometer |
| Model 166T, 36 ̋ telescoping SS pitot tube, fully adjustable from 11.5" to 36" (29.2 to 91.4 cm) |
| Two No. A-303 Static Pressure Tips with Magnetic Mounting |
| Two 4-1/2 Ft. Lengths 3/16" I.D. Rubber Tubing |
| No. A-397 Step Drill for 3/16" - 1/2" Holes in 1/16" Increments |
| No. A-532 AV Slide Chart |
| 9 V Alkaline Battery |
| Fitted Polyethylene Case |
Product Applications
• Building commissioning
• Building HVAC test and balance
• Critical environment testing
• Industrial process verification
• Instrumentation validation
