INOR溫度傳送器 MinIPAQ-HLP

MinIPAQ-HLP

Basic Programmable 2-wire Transmitter

MINIPAQ-HLP is a basic, programmable non-isolated, easy-to-use 2-wire transmitter. The Low Profile housing has a hight of only 18.5 mm / 0.72 inch. Configuration is made in seconds with the user friendly Windows software, MINIPAQ Soft. No external power supply required for configuration. The transmitter is programmable for RTD’s in 3- and 4-wire connection according to different standards as well as for 11 T/C types.

Useful error correction functions improve the accuracy.

• Robust terminals with test connections
• Only 18.5 mm / 0.72 inch high
• Accepts RTD in 3- and 4-wire connection and 11 T/C type
• Temperature linear output
• Sensor error and system (sensor/transmitter) error correction for
  highest total accuracy
• Configuration without external power
• Easy-to-use Windows configuration software
• NAMUR compliant
• Rugged design tested for 10 g vibrations
• USB communication

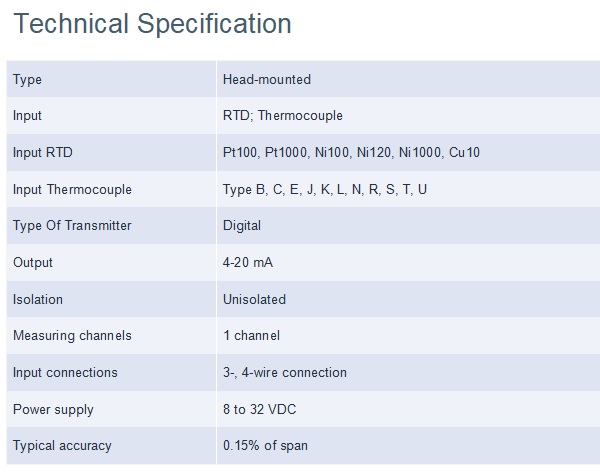

詳細的產品規格請見附檔。

更多的產品資訊，歡迎聯絡我們Contact Form
