Digital Loop Powered LCD Indicator integrated into a Connection Head
High visibility insights from the inside
LCD-H300 is a digital loop powered LCD indicator integrated into a connection head with window.
The connection head is designed to be fitted to a temperature sensor and can also be equipped with a built-in DIN B head mount transmitter.
The LCD indicator is installed directly in a 4-20 mA loop without need for external power supply.
The indicator is used to show numerical values proportional to the signal current from any type of signal transmitter or device producing a 4-20 mA signal and is equipped with a high-contrast, easy-to read 4-digit LCD display with backlight.
A typical application is to use LCD-H210 fitted to a temperature sensor and connected to the 4-20 mA loop from a signal conditioner for local view for the measured temperature.
Programming of the indicator is done with push buttons or with a smartphone via NFC.

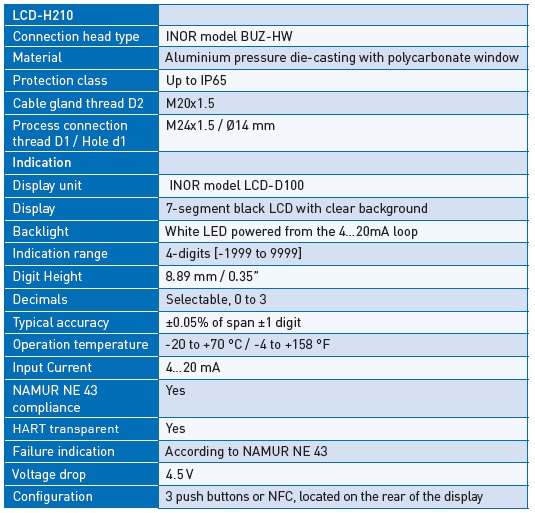

High contrast, 4-digit LCD display with 8.9 mm / 0.35” digit height
Loop powered backlight
Any range between -1999 to 9999 for 4 to 20 mA input
High accuracy allows for high precision read-outs
HART transparent
Aluminium connection head with polycarbonate window
Type DIN B head mount 2-wire transmitter can be integrated
Designed for installation on a temperature sensor
LCD-H210 can be ordered pre-fitted to a temperature sensor, with a built-in temperature transmitter and in customized versions on request
