INOR LCD Indicator LCD-H300 AL

LCD-H300 AL

Loop Powered LCD Indicator with backlight for field mounting

High visibility in challenging conditions!

LCD-H300 is a digital loop powered LCD indicator in a robust aluminum field housing designed for tough environments. The field indicator is installed directly in a 4-20 mA loop without need for external power supply. The indicator is equipped with high-contrast, easy-to-read 4-digit LCD display with backlight. The scale is easily programmed with push buttons or with a smartphone via NFC and the app INOR Connect.

• Installation directly in a 4-20 mA loop without need for separate power supply

• High-contrast and backlit LCD-display for good visibility

• 4.5V voltage drop

• Any indication range between -1999 to 9999 for 4 to 20 mA input

• High accuracy

• Can be fitted with an integrated 2-wire transmitter type DIN B

• HART - transparent

• Operating temperature range between -20 to +70°C / -4 to +158°F

• Robust housing with possible protection up to IP68 for tough industrial environments

• 3x M20 or 3x ½NPT threaded ports

• Customized versions on request

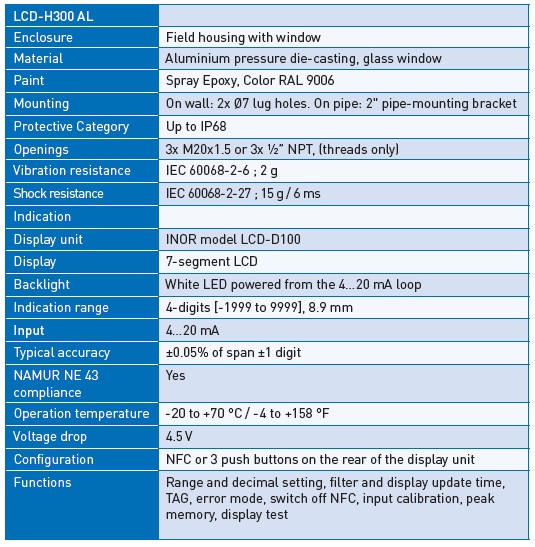

Technical Specification
