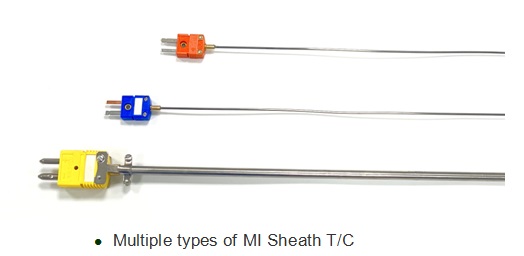

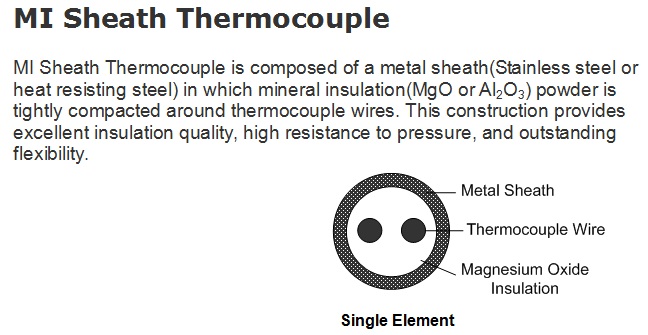

MI Sheath Thermocouple

Compared with general thermocouples, MI Sheath Thermocouple has many advantages:

 1.Quick Response: The small sheath diameter, which also has small heat capacity, is highly sensitive to temperature changes, providing a very fast response time.

 2. High Flexibility: MI Sheath thermocouple can be easily installed owing to its high mechanical strength and elasticity up to bending 2 times of the sheath O.D.

 3. Long Service Life: Despite much smaller overall diameter and light weight, MI Sheath thermocouple has remarkably longer service life compared to conventional thermocouple.

 4. High Mechanical Strength and Pressure Resistance: The composite structure is resistant to extremely high vibration levels, and by choosing appropriate sheath material, it is reliable to use in corrosive atmospheres and abnormally high or low temperatures. Thought it has small diameter, it can withstand about 350Mpa at a temperature of 650°C.

THERMOWAY provide comprehensive customized service, please refer to

our catalog: http://www.thermoway.com.tw/zh/productkindmain-2284.html

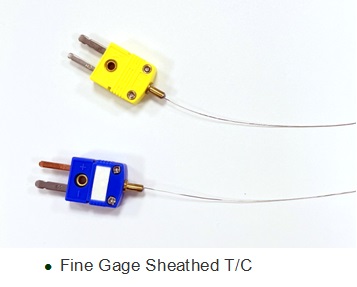

Know more about Fine Gage Sheathed T/C:

http://www.thermoway.com.tw/zh/productdetail-1131.html

Contact us for more product information.

Keyword search: MI CABLE, Mineral insulated Cable, MI Sheath thermocouple, Metal Sheathed Thermocouple
